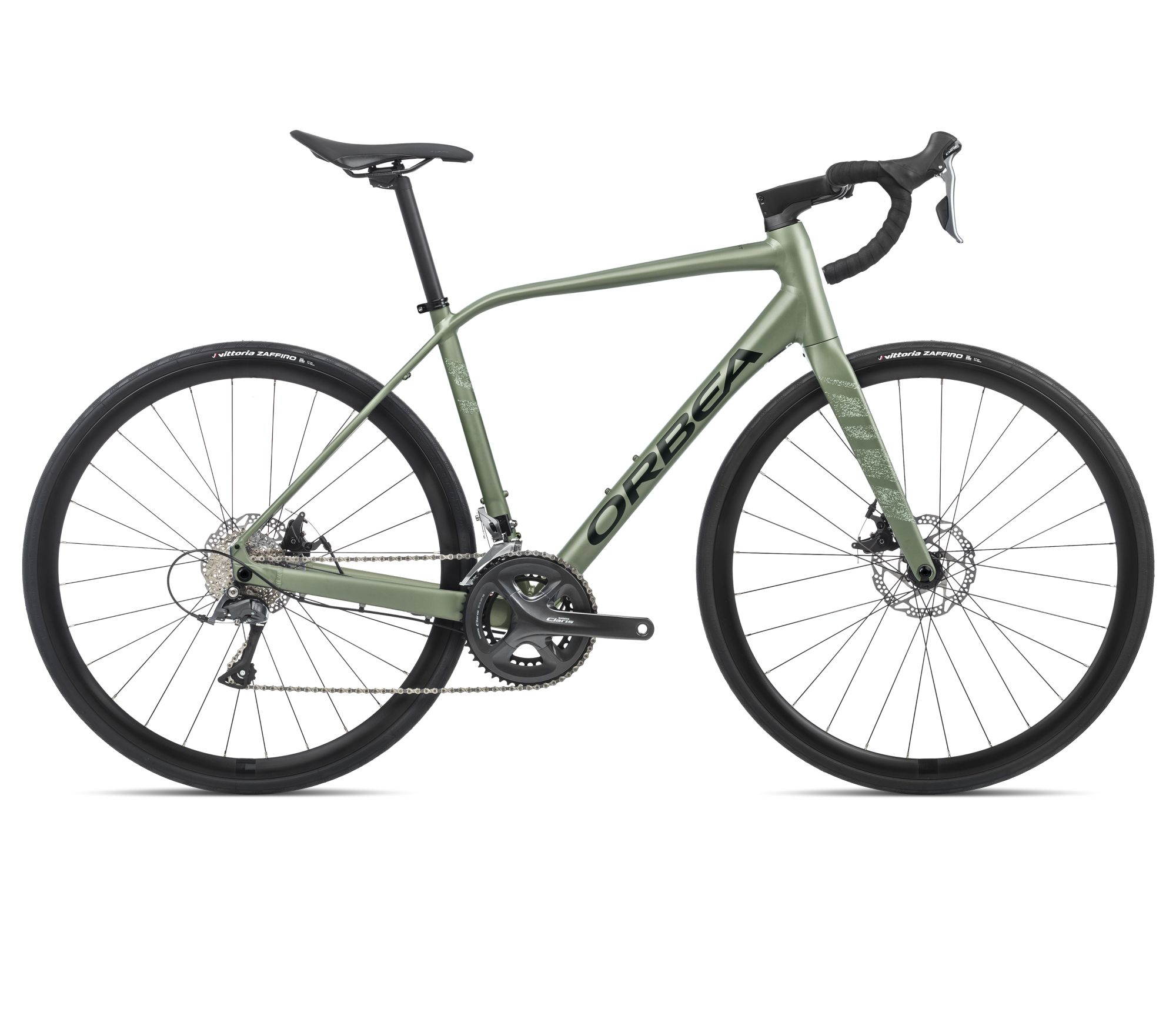

Orbea Avant H60
Details
RIDING WITHIN REACH
Grab your Avant and fill your bottles before rolling out on your afternoon ride. No other machine can better help you enjoy the exhilaration of road cycling. The speed, freedom and the views offered by quiet roads are all included free with every Avant - and you love it.
ICR PLUS
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.
AVANT CARBON FORK
The carbon layup and shaping of the Avant fork offers the best combination of elasticity, tire clearance and torsional stiffness. The fork legs sport integrated fender mounts and ample tire clearance for even more versatility.
HIGH POLISH
The new Avant receives the same level of design attention as our carbon frames - The tubes are butted and hydroformed with smooth, polished welds to match the dramatic look of the monocoque frame.
| Frame Size | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Seat Tube (mm) | 420 | 445 | 470 | 495 | 520 | 545 | 575 |
| Top Tube (mm) | 511 | 526 | 539 | 553 | 569 | 586 | 597 |
| Head Tube (mm) | 122 | 141 | 161 | 180 | 201 | 221 | 241 |
| Chainstay (mm) | 425 | 425 | 425 | 425 | 425 | 425 | 425 |
| BB Height (mm) | 264 | 264 | 264 | 266 | 266 | 266 | 266 |
| BB Drop (mm) | 75 | 75 | 75 | 73 | 73 | 73 | 73 |
| Wheelbase (mm) | 989 | 996 | 1004 | 1006 | 1020 | 1029 | 1038 |
| Head Angle | 71° | 71.5° | 71.9° | 72.4° | 72.6° | 72.8° | 73° |
| Seat Angle | 74.5° | 74° | 73.75° | 73.5° | 73.5° | 73° | 73° |
| Standover (mm) | 713 | 738 | 761 | 790 | 809 | 833 | 852 |
| Reach (mm) | 365 | 370 | 375 | 380 | 390 | 395 | 400 |
| Stack (mm) | 525 | 545 | 565 | 585 | 605 | 625 | 645 |
| Fork Length (mm) | 370 | 370 | 370 | 370 | 370 | 370 | 370 |
| Rake (mm) | 48 | 48 | 48 | 43 | 43 | 43 | 43 |
| Trail (mm) | 65 | 62.5 | 58.1 | 58.8 | 58 | 56.5 | 56.5 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| 47 | 155 - 160 | 5'1" - 5'3" |
| 49 | 160 - 166 | 5'3" - 5'5" |
| 51 | 167 - 172 | 5'5" - 5'8" |
| 53 | 173 - 179 | 5'8" - 5'10" |
| 55 | 180 - 185 | 5'10" - 6'1" |
| 57 | 186 - 191 | 6'1" - 6'3" |
| 60 | 192 - 207 | 6'3" - 6'9" |
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | Orbea carbon 2021, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout |
| Stem | OC Road Performance RP21, -6º |
| Frame | Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system. |
| Tires | Vittoria Zafiro V Rigid bead 700x28c |
| Brakes | Jagwire RideRever Mechanical Disc |
| Saddle | Fizik Aliante R5 |
| Wheels | Alloy, Tubeless, 700c, 19c, 28H |
| Headset | Acros Alloy 1-1/2" Internal Cable Routing |
| Crankset | Shimano Claris R2000 34x50t |
| Seatpost | Alloy, 27.2mm, Setback 20 |
| Shifters | Shimano Claris ST-R2000 |
| Rear Derailleur | Shimano Claris RD-R2000-GS |
| Front Derailleur | Shimano Claris FD-R2000-F |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Metallic Green Artichoke / 55cm / 700c | 8434446522116 | R10155A9 |
| Metallic Green Artichoke / 49cm / 700c | 8434446522024 | R10149A9 |
| Metallic Green Artichoke / 47cm / 700c | 8434446521997 | R10147A9 |
| Moondust Blue - Titan / 55cm / 700c | 8434446522130 | R10155AB |
| Moondust Blue - Titan / 57cm / 700c | 8434446522161 | R10157AB |
| Orange Candy - Cosmic Bronze / 47cm / 700c | 8434446522000 | R10147AA |
| Orange Candy - Cosmic Bronze / 57cm / 700c | 8434446522154 | R10157AA |
| Moondust Blue - Titan / 51cm / 700c | 8434446522079 | R10151AB |
| Orange Candy - Cosmic Bronze / 51cm / 700c | 8434446522062 | R10151AA |
| Orange Candy - Cosmic Bronze / 60cm / 700c | 8434446522185 | R10160AA |
| Orange Candy - Cosmic Bronze / 53cm / 700c | 8434446522093 | R10153AA |
| Moondust Blue - Titan / 49cm / 700c | 8434446522048 | R10149AB |
| Metallic Green Artichoke / 53cm / 700c | 8434446522086 | R10153A9 |
| Moondust Blue - Titan / 60cm / 700c | 8434446522192 | R10160AB |
| Moondust Blue - Titan / 53cm / 700c | 8434446522109 | R10153AB |
| Orange Candy - Cosmic Bronze / 49cm / 700c | 8434446522031 | R10149AA |
| Moondust Blue - Titan / 47cm / 700c | 8434446522017 | R10147AB |
| Metallic Green Artichoke / 51cm / 700c | 8434446522055 | R10151A9 |
| Metallic Green Artichoke / 57cm / 700c | 8434446522147 | R10157A9 |
| Metallic Green Artichoke / 60cm / 700c | 8434446522178 | R10160A9 |
| Orange Candy - Cosmic Bronze / 55cm / 700c | 8434446522123 | R10155AA |
